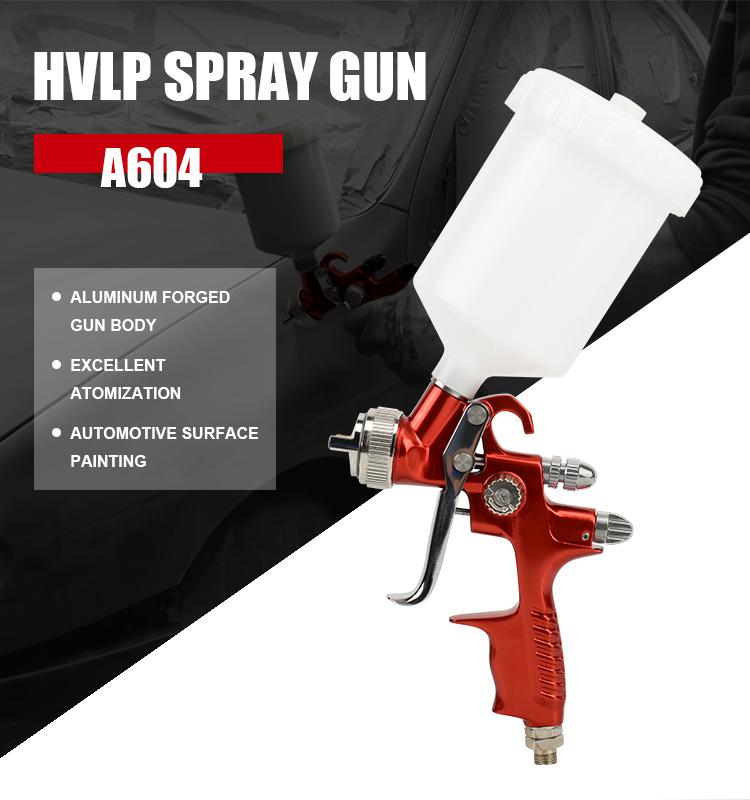

HVLP Spray Gun A604 For Car Repair Painting


Perfect Effect Spray gun A604 Hvlp Paint Gun for car repair painting

see below video


Product Description

This kind of Automotive HVLP Spray Gun is made of high quality materials with advanced technology. It uses compressed air to atomize the paint into fine paint droplets, and sprays it onto the surface of the object under the driving of air flow. Its efficiency is 5-10 times higher than ordinary brush coating, and the coating film is fine, smooth and uniform. In addition, the nozzle is manufactured in a flat shape, thus it is easy to replace, and it can effectively prevent the tip of the gun from falling off and abrasion. The Automotive HVLP Spray Gun also adopts pulse pressure rotation function, which enlarges the blower mouth and greatly increases the working range and power. It is very popular with our customers all over the world due to excellent performance.

Product Information

Model No.: A604

Type of Feed: Gravity

Standard Nozzle: φ1.3mm

Pattern Width: 180-260mm

Paint Capacity: 500cc

Air Consumption: 4.1-4.5cfm

Required Pressure: 2.0-3.5bar

HVLP spray gun A604
