Practical Tips On How To Use 1-inch Pneumatic Impact Wrench

date
2024/01/22



The 1-inch pneumatic impact wrench is a powerful and versatile tool that can make truck repair and pipe pile jobs like loosening lug nuts and other stuck bolts much easier. We’ll cover some practical guidance on how to properly use a 1-inch pneumatic impact wrench.



Select an Appropriate Air Compressor



An impact wrench needs a sufficient air supply to generate its high torque output. For most 1-inch drive models, an air compressor that provides at least 5-8 HP at 90 PSI is recommended. This amount of airflow will enable the wrench to deliver its full rated power. Using a smaller air compressor can cause a loss of torque and prevent the tool from working effectively.



Applying Penetrating Fluid



If dealing with stubborn, frozen or over-torqued bolts, spray them liberally with penetrating fluid before attempting to loosen with your impact wrench. Let it soak in for 5-10 minutes. The fluid will work its way into threads and crevices, helping break down rust and corrosion so the bolts release easier. Reapply if needed.



Positioning at Proper Angle



For maximum impact, you want to position the wrench head squarely on the bolt or nut without slipping off. Angling it slightly so the impacting hammer contacts the sides rather than the top surface can help prevent cam-out where it loses grip and spins without loosening. Apply firm inward pressure when impacting to keep the socket firmly engaged.



Start Off Slowly



Resist the temptation to start hammering away full power right off the bat. Build up speed gradually, starting with a lower torque setting if available. Let the impacts provide an initial breakaway then increase force if needed. This prevents overstressing the bolt at the outset or damaging the threads. Sudden hammering at max torque is more likely to damage bolts.



Add a Reaction Arm


A 1-inch impact can generate tremendous twisting force. For automotive wheel lug nuts, use a sturdy reaction arm brace against the wheel to counteract the wrench's torque. This prevents damage to the wheel and suspension components.



Give Tool a Rest


After prolonged use, give your impact wrench time to cool down before continuing operation. This helps prevent internal damage from overheating. If it becomes too hot to comfortably hold, take a 15 minute break. The rest period will extend your tool's lifespan.



Out, Don't Round Off



One downside of high torque impacting is the risk of rounding off worn or damaged bolt heads. At the first sign of the socket starting to slip out of the bolt recess, stop impacting to avoid rounding it off. Switch to a six or twelve-point socket that can grip flats rather than corners. If too far gone, use a locking plier tool to back it out.



Check Your Work



It’s easy to overtighten with these powerful tools, so check your work after tightening a bolt. Verify with a torque wrench or gauge that it’s not overtightened. Impact wrenches can also loosen stuck bolts so far they become damaged, so inspect threads and make sure the bolt is still reusable after removing it.




You can safely handle powerful AEROPRO AP7495 1 inch air impact wrench and gain the most benefit from this versatile automotive tool.

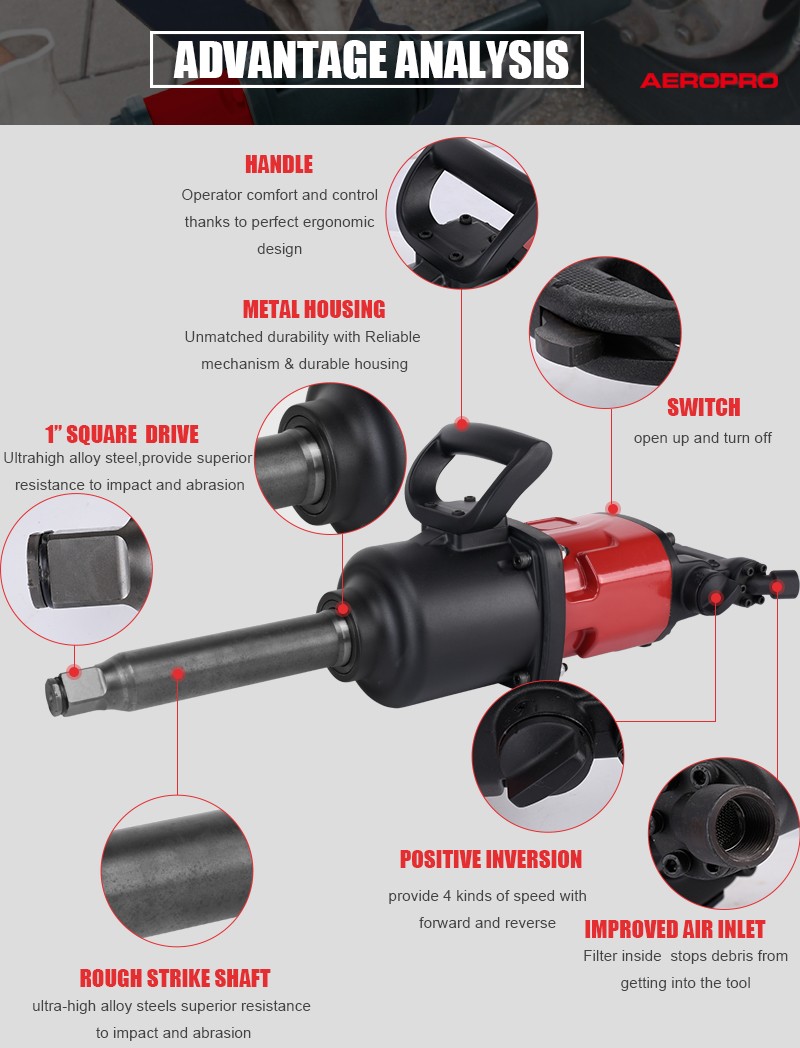

45 degree air inlet design, prohibit hose twist from working, operate easy. Longer drive shaft, satisfy limited and concave place's screw bolt assembly. Special alloy steel strike structure, strong, anti-fatigue, super long life, excellent toque/weight ratio. Ergonomic design handle, central of gravity is more steady, operate comfortable and easy.

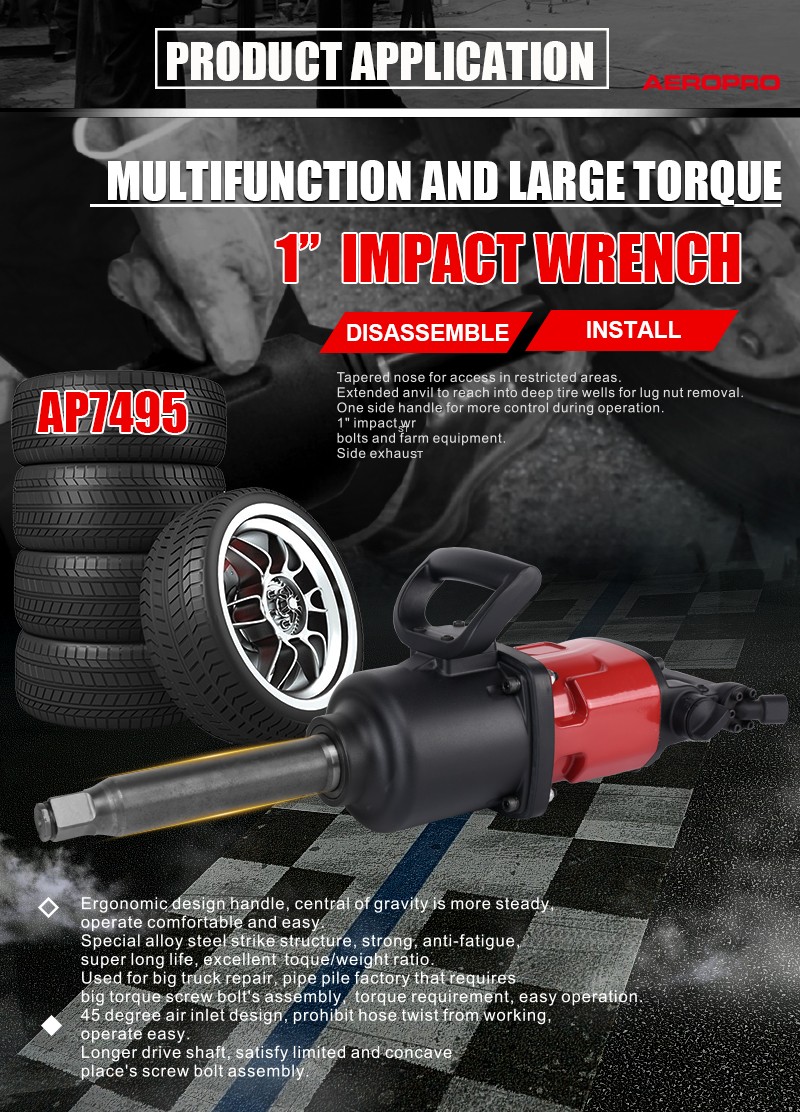

Used for big truck repair, pipe pile factory that requires big torque screw bolt's assembly, torque requirement, easy operation.



Model No.:AP7495

Square Drive:1"

Capacity Bolt Size:2"(50mm)

Free Speed RPM:2800RPM

Working Torque:2500ft-lb(3400N.m)

Overall Length:25.4"(644mm)

Air Inlet(NPT):1/2"

Air Hose(ID):5/8"

Avg.Air Consumption:43cfm(1225 l/min)

Net Weight:41.6lbs(18.9kgs)

AEROPRO has quickly risen to become an unrivaled global producer of air-powered devices including air tools, air spray gunair nailer, airless paint sprayer, and etc.

AEROPRO seeks independent sales agent to represent and market our industry-leading pneumatic tools. We support OEM, ODM, OBM customization, small order quantity is acceptable and samples are available.

Make any cooperation possible. Any services related to the product, inquire with us now! Sales@Aeroprotools.Com
